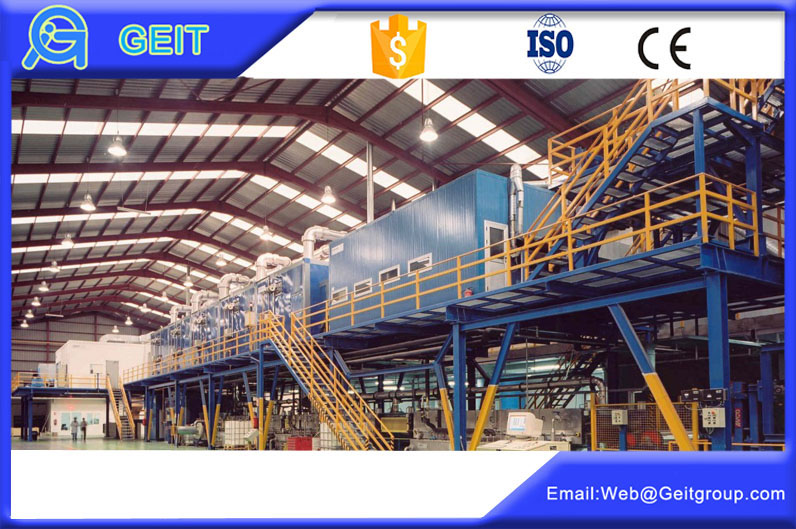

Printing technology in color coating line
Printing technology in color coating line
This is a processing of coating sheet with organic paint and then overprint multiple patterns. The coated sheet has good characteristic such as processability, corrosion resistance, decoration, as well high strength and good deformability. It is deep working product and energy-saving material. Recent years, high quality and multi-function color coating strip is developed rapidly and the color steel plate with high corrosion resistance, high deformability, fingerprint resistance and bacteria resistance etc will be good prospect.
Technical Parameter of Printing technology in color coating line:
| Materials | GI, GL, Alu coil, AZ, EG,CR |
| Thickness | 0.15mm-1.6mm |
| Flatness | |
| Width | 600mm-1500mm |
| Coil ID | 508mm, 610mm |
| Layers of the coating |
2/2(2 layers of top coating/2 layers of bottom coating);
2/1(2 layers of the top coating, 1 layer of bottom coating); |
| Form | Gravure transfer printing |
| pattern | According to customers’ requests |
| Paint | PE, HDP, SMP, HPC, PVDM |
| Thickness of dry film of printing ink | 1-3μm |

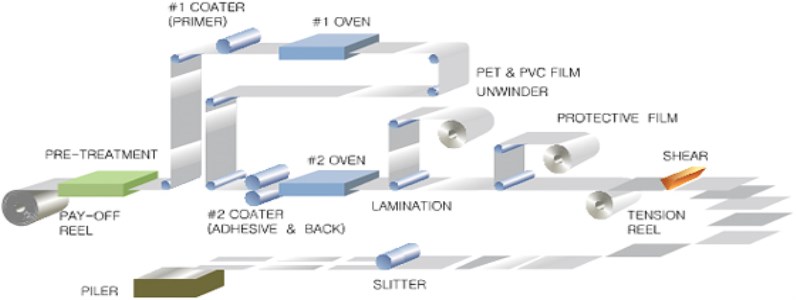

Printing technology (color coating line )work flow:
1#2# Uncoiler → steering pinch roller → steering roller →confluent pinch roller → inlet shear → sewing machine → press burr and pinch roller → 1# tension roller → inlet looper → 2# tension roller →degreasing → brushing → water washing → drying → chemical roller-coating machine → chemical-coating drying furnace → 1# deviation-correcting machine → 3# tension roller → initial coating unit → initial coating curing furnace → cooling unit → 2# deviation-correcting machine → dryer → 3# deviation-correcting machine → 4# tension roller → printing unit → fine coating unit → fine coating curing furnace → cooling unit → dryer → 4# deviation-correcting machine → 5# tension roller → outlet looper → 6# tension roller → pinch shear → steering roller → EPC deviation-correcting coiler → inspection → package → entering warehouse

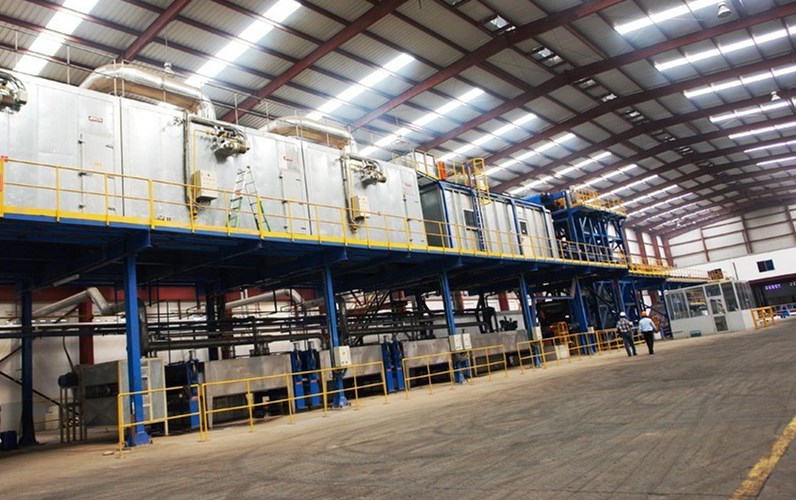

We manufacture a wide range of color coating and printing line that incorporates surface preparation, service coating, heating, cooling, prime coating, top coating and guard film application. We also provide as well as make colour coating machines We have a state-of-the-art manufacturing unit that is well equipped with modern machines to take care of all the specifications of clients.
