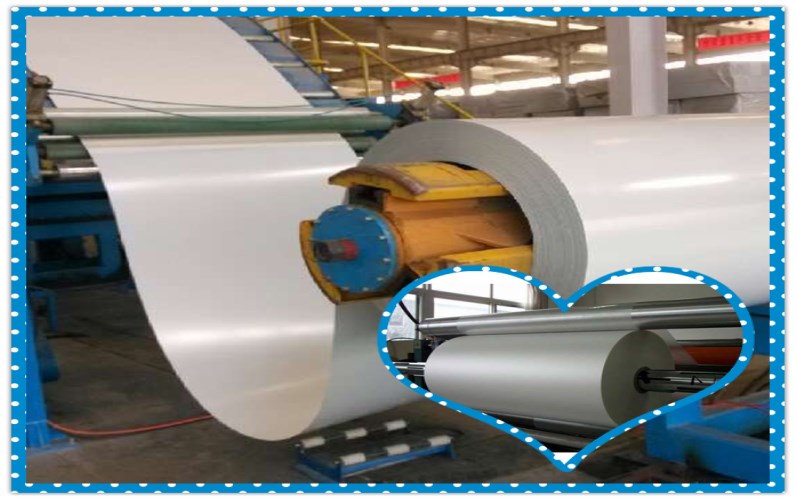

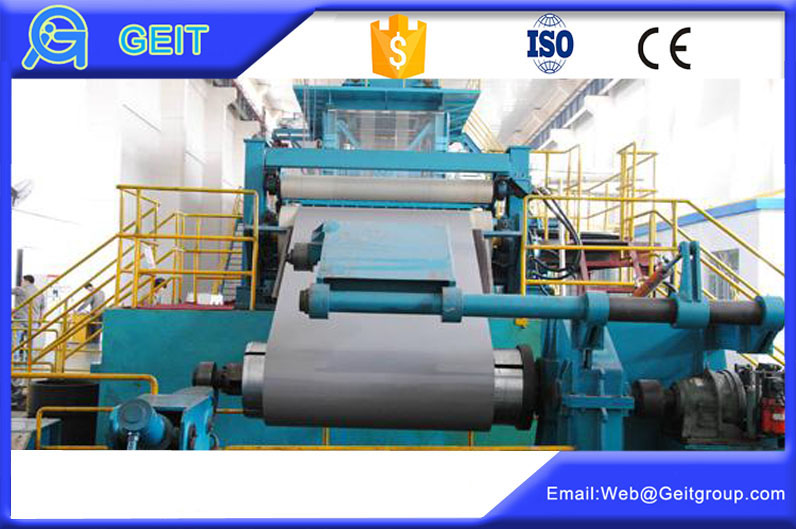

PVC laminated steel sheets(VCM) production line
VCM film laminated steel sheet is a kind of new style color coated metal sheet, firmly laminated with PVC film and other polymer film. It not only has metal’s good strength and processing properties, but also has film’s excellent decoration property,corrosion-resistance property, weather resistance property,easy-to-clean property and so on. To match the huge requirements of home appliance field, GEIT supply the PVC laminated steel sheet(VCM) production line for those who want to plan or operate a PVC laminated steel sheet plant.
Technical Features of PVC laminated steel sheet(VCM) production line by GEIT:
Raw material
strip steel
Width of strip
800-1400mm
Thickness of strip steel
0.2-1.2mm
Material of base material
Electro-galvanized plate strip, cold-rolled plate strip or hot-dip galvanized plate strip subject to leveling treatment
Outer diameter of steel coil
Φ800-2000mm
Inner diameter of steel coil
Φ5058-610mm
Process speed
When applying film or PCM coating, the maximum design speed is 60m/min; when printing, the maximum design speed is 40m/min.
Roller coating process and products
The front face is applied with PVC film,PET film or PCM coating, and the front face of the over-coating is printed in three colors continuously.
Production capacity
30000-80000t/year
Types of fuels
Natural gas, electricity, liquefied petroleum gas, coal and coal gas
Degreasing form
Two-stage chemical degreasing+ three-stage water rinsing+ pure water spraying
Energy-saving mode
Waste-gas incineration, waste heat recovery and utilization, energy-saving consumption reduction.
Application : For Household Appliance:
1. Refrigerator door panels &side panels, Washer, Freezers, Air conditions,
2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods
3. Computer Panels , DVD/DVB metal housing , TV back panel etc.
4. Teaching Board: whiteboard, blackboard, greenboard(chalk board).
5. Indoor Decoration: Fireproof Door, steel door,kitchen cabinet,Ceiling,wall decoration.
6. Shipping Industries: Ship, Yecht, Marine.
7. Elevator/Medical Equipment/Rubbish Bin.
