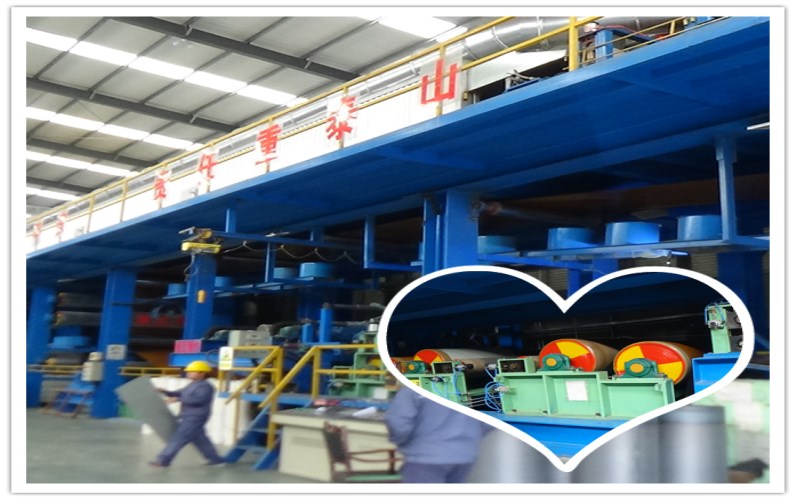

steel and aluminium coil coating&printing line
Aluminum coils or galvanized steel strip is painted and baked twice in coating lines and printed with some patterns to ensure high resistance and appealing appearance. the coil printing line is composed of uncoiler, sewing machine, accumulator, degreasing and washing unit, roller coating machine, printing pattern machine, furnace, shear, coiler etc.
Features of steel and aluminium coil printing line:
1. Utilize high precision rolling coater with excellent quality of coating layer.
2. A fine coating layer meets international standard.
3. It is suitable for coating with Acrylic, Polyester, Polyvinylidene Fluoride (PVDF).
4. Easy to operate and control, and provide the online operation training.
5. Designed to fit the area of customer's factory.
6. Coater consists of PU and Chromate coating rollers with advantages as:
Pu roller:
Available for full coat.
Matted surface effect.
Adapt to wooden、granite pattern effect.
Coating thickness can be thin & thick.
Minor impurities won’t cause surface defects easily.
Chromate roller
Applicable for thinner coils.
The coated surface is high gloss and delicate.
Coating thickness can be thicker.
The roller is abrasion resistance and sustainable.
Lower maintenance costs.
GEIT can supply two kinds of coil printing line base on various materials:
1. Steel coil printing line:
material | Thickness | Width | Speed | Thickness of coating | Thickness of printing | Energy |
GI, GL, Cold-rolled strip | 0.1-1.5mm | 500-1750mm | 30-180m/min | 5-30μm | ≤1μm(oil ink or polyester) | Gas, electricity, steam etc |
2. Aluminium coil printing line:
material |
Thickness |
Width |
Speed |
Thickness of coating |
Thickness of printing |
Energy |
Hot aluminium sheet, aluminium alloy |
0.2-3mm |
700-1850mm |
25-130m/min |
Max40μm |
≤1μm(oil ink or polyester) |
Gas, electricity, steam etc |
The above specification is for reference only. Customers’ specification is available upon requests.
